I have a question concerning connecting two DVB-T dongles on the same
clock
source for interferometric (or passive radar) measurements, as described
at

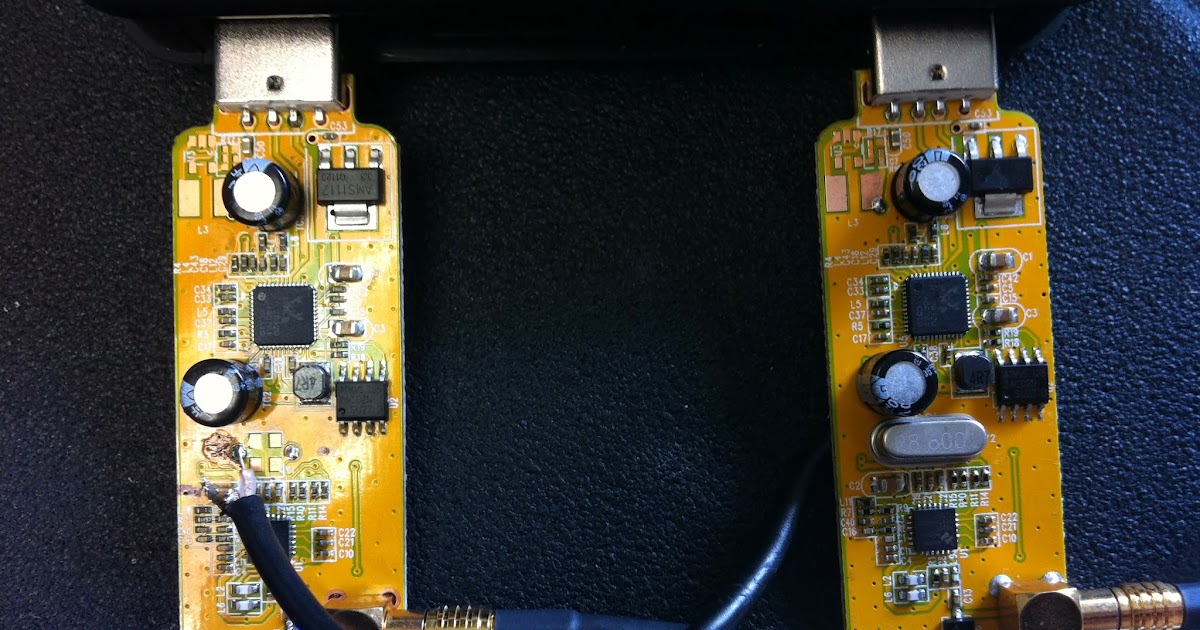

http://kaira.sgo.fi/2013/09/16-dual-channel-coherent-digital.html
I have assembled the same system with one dongle used as oscillator on a
28.8 MHz resonator
and the second one as a slave to this clock. All works fine, solved the
issue
when the oscillator would not start, now I have a reliable source of
measurements.

Initial tests (these are R820T-based dongles) exhibits significant
random phase drift
which I attributed to heating of the chips (they get above 50 degC when
running continuously),
so after gluing two heat sink with heat-conducting epoxy, I more or less
managed to
get a stable phase measurement when recording a same oscillator (200
MHz) with the
two dongles and displaying the phase as
angle(conjugate(signal1)*signal2).

The question is as follows: at http://jmfriedt.sequanux.org/ph_tout.pdf
I have shown one
graph, quite representative of all my experiments, displaying the
evolution of the phase
difference between both dongles connected to the same 200 MHz
oscillator. I always
start with a quite stable phase difference (red curve – inset in a zoom
of this particular
measurement) after plugging in my USB hub fitted with the two dongles
and starting gnuradio-companion
for recording the dongle I/Q stream (notice the abscissa sampling rate
of 10 Hz => the full
graph is about 1-hour long). After about an hour, I stop recording the
red curve, and
all I do is switch off gnuradio-companion and start it back => green
curve with a quickly falling
phase. Switch off again, disconnect-reconnect USB hub, restart an
acquisition => blue curve.
Same procedure => magenta curve.

Can anyone hint at an explanation as to why I always start with a
reasonably stable phase
difference (yet not constant – is the phase fluctuation indeed due to
heating of the fractional
PLL in each RF frontend, drifting below the feedback loop time constant
?), but more worrisome
why I always get this huge drift after launching a new acquisition ? The
fact that I always
get the same slope hints at a sofware/hardware communication issue, but
how it is possible
since both dongles are clocked by the same source and receive the same
commands from the
software ?

Thanks, JM


JM Friedt, FEMTO-ST Time & Frequency/SENSeOR, 32 av. observatoire, 25044
Besancon, France

This is largely because this $10.00-apiece hardware was never designed
for this class of application. When you’re doings things that require
phase-coherence, you have to design your radios to support it.

There are at least two PLLs involved here–one on the R820T chip, and
another, as far as I can tell, in the RTL2832U chip, which does the
conversion to baseband from the low-IF of the R820T.

I was never able to get my RTL receivers to be phase-coherent in any
useful way, there was always a slow phase drift, that was unpredictable.

On 2015-05-28 14:18, [email protected] wrote:

get a stable phase measurement when recording a same oscillator (200 MHz) with
the
phase. Switch off again, disconnect-reconnect USB hub, restart an acquisition =>
blue curve.
Thanks, JM
Links:

Thanks for your reply. Indeed designing phase coherent receivers is my
daily
job activity (partly), but the fun of hacking DVB-T receivers is to find
ways of using
these for applications they were never intended for. I have indeed read
your posts
concerning the difficulties in reproducing interferometric measurements,
a great
source of inspiration. At the moment we are considering quantifying the
phase
drift (switching from a reference oscillator to the unknown signal), but
I wonder
nevertheless why some have achieved excellent coherence and some
(including myself)
are failing. Nevertheless I’d like to actually identify the source of
the drift
(PLL bandpass, temperature-related setpoint drift, software
configuration ?).

Thanks, JM

Initial tests (these are R820T-based dongles) exhibits significant random
phase drift

for recording the dongle I/Q stream (notice the abscissa sampling rate of 10
Hz => the full

since both dongles are clocked by the same source and receive the same
commands from the

software ?

Thanks, JM

Links:

[1] http://kaira.sgo.fi/2013/09/16-dual-channel-coherent-digital.html
[2] http://jmfriedt.sequanux.org/ph_tout.pdf


JM Friedt, FEMTO-ST Time & Frequency/SENSeOR, 32 av. observatoire, 25044
Besancon, France

Hi,

I guess I should respond, as I’m responsible for the blog posting that
you
linked.

I tested the relative phase stability using amplified noise that was fed
via a splitter onto the two dongles. I cross-correlated the noise and
found
that there was a deterministic frequency difference between the
channels. I
recall this was a fraction of a radian per second. I just calculated
what
this small deterministic frequency difference was and removed it. I
found
that I could use the same constant during the whole experiment and it
also
didn’t change after power cycling the dongles. This is how I produced
the
flat line IQ plot that is in the blog posting.

Based on your plots, you are mostly also seeing a constant deterministic
frequency difference (the linear slope on traces 3 and 4). Trace 3 has a
phase jump for some reason and I don’t know what is happening with trace
1.

In my tests, I only measured data for several hours at a time. I didn’t
see
any loss of lock or weird behavior during my experiments other than what
I
indicated above. I have heard from several people that they have managed
to
reproduce the dual rtl_sdr dongle configuration and to even use it for
passive radar. I have even seen people taking the proper engineering
approach and feeding a clock with a fanout buffer. I haven’t seen any
cross-correlation plots from these devices though.

I have had issues with heating on the smaller dongles. In these cases
the
down converter stops working. A heat sink fixed this issue.

Keep trying, I think you are almost there. Try recabling the clock
differently or try using another pair of dongles – there is a lot of
variability between the dongles. Try looking at the clock signal with a
scope to see what the levels are with a working individual dongle.

I assume you are doing this for fun (that’s why I did it at least).
There
are much easier ways to get multiple coherent channels into your
computer
with much better fidelity.

juha
